Introduction

Gantry cranes are among the most widely used lifting systems in factories, warehouses, storage yards, and ports due to their exceptional capability to handle heavy loads efficiently in both outdoor and indoor environments. With the rapid industrial expansion across the Kingdom of Saudi Arabia, these cranes have become an indispensable asset for projects requiring safe, reliable, and effective lifting solutions.

Al Manarat Al Munira provides a comprehensive suite of customized industrial lifting solutions tailored to diverse commercial and industrial sectors, engineering systems aligned with unique site conditions and operational demands.

What Are Gantry Cranes?

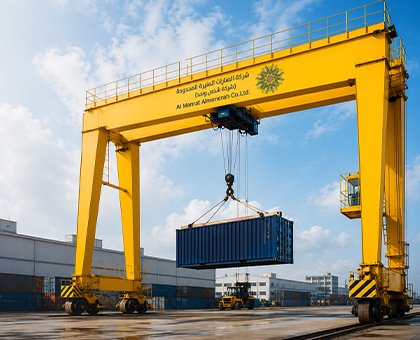

Gantry cranes are heavy lifting structures featuring a metallic bridge frame supported by floor-mounted legs that travel on wheels or dedicated rail tracks. They raise, lower, and transport heavy payloads across job sites without needing overhead attachment to a building's structural framework.

This standalone design makes gantry cranes an ideal solution for facilities requiring flexible mobility or operating in locations where mounting overhead cranes is impractical.

How Do Gantry Cranes Work?

Gantry cranes operate using an electric or manual hoisting unit traveling across a horizontal bridge girder, while the entire crane structure moves along floor tracks or heavy-duty casters. This enables multi-directional material handling across the workspace.

Core structural components include:

  1. Main Bridge Girder
  2. Supporting A-Frame / Leg Structures
  3. Hoisting Mechanism
  4. Traveling Trolley
  5. Control Interfaces
  6. Wheels / Ground Rails
  7. Safety Limiter Systems

Types of Gantry Cranes

Gantry cranes are manufactured in multiple structural configurations to suit specific industrial applications:

Full Gantry Cranes

Utilized in large-scale plants, shipping ports, and open storage yards. Built for high payload capacities and expansive span coverage.

Semi-Gantry Cranes

Designed for facilities requiring reduced height overheads while maintaining smooth travel mobility along a combined wall and floor track system.

Mobile Gantry Cranes

Engineered for easy relocation across work bays, providing operational adaptability for dynamic, multi-stage projects.

Portable Gantry Cranes

Ideal for light-duty workshops and compact plants, featuring rapid assembly, disassembly, and fast repositioning.

Applications of Gantry Cranes

Gantry cranes are widely deployed across numerous sectors, including:

  1. Manufacturing facilities
  2. Warehouses and distribution hubs
  3. Industrial maintenance workshops
  4. Seaports and container terminals
  5. Structural steel stockyards
  6. Precast concrete plants
  7. Civil infrastructure projects
  8. Power generation stations
  9. Heavy machinery production plants

They are actively used for loading/unloading cargo trucks, positioning heavy plant machinery, handling industrial molds, and hoisting equipment during installation and maintenance operations.

Why Do Plants Rely on Factory Cranes?

Industrial factory cranes are fundamental to elevating operational output by transferring raw materials and finished products smoothly and safely across production lines.

Key advantages include:

  1. Reduced transit cycle times for heavy materials.
  2. Greater overall output and productivity.
  3. Optimized site organization and workflow clearways.
  4. Decreased dependence on manual handling.
  5. Enhanced workplace safety standards.
  6. Reduced risk of damage to high-value materials and equipment.

Key Advantages of Gantry Cranes

Gantry cranes deliver clear operational benefits that make them a leading industrial lifting choice:

  1. High Mobility Flexibility: Suitable for indoor plant floors or outdoor yards, with easy reconfiguration based on project needs.
  2. Heavy Payload Capacity: Available in wide tonnage ranges to match light-duty shop tasks or heavy industrial requirements.
  3. Simplified Installation: Requires no major structural modifications to existing buildings, speeding up installation and deployment.
  4. Low Operational Overhead: Delivers high operational efficiency while reducing the need for auxiliary material handling machinery.
  5. Elevated Operational Safety: Minimizes risks linked to manual lifting while providing precise load movement control.

How to Choose the Right Gantry Crane?

Selecting the right crane depends on evaluating several technical and environmental factors:

  1. Payload Weight: Define the maximum load to ensure selecting an appropriately rated lifting capacity.
  2. Lifting Height: Clear hook height directly determines overall crane frame dimensions and hoist specifications.
  3. Workspace Dimensions: Measure site area, bay length, and span clearance to establish crane size and travel range.
  4. Duty Cycle: For continuous shift operations, choose heavy-duty rated machinery engineered for intensive workloads.
  5. Environmental Conditions: Outdoor or corrosive environments require special protective coatings, dust covers, and moisture resistance.

Customized Industrial Lifting Solutions

Every project presents distinct layout and load challenges. Al Manarat Al Munira provides custom-tailored industrial lifting solutions designed around specific client operational requirements.

Customized services cover:

  1. Designing lifting frameworks matched to site dimensions.
  2. Calculating exact required load capacities.
  3. Implementing advanced control systems (e.g., radio wireless remotes).
  4. Tailoring equipment for specialized assembly lines.
  5. Modernizing and retrofitting existing crane setups.
  6. Turnkey installation, commissioning, and maintenance programs.

This tailored approach ensures high efficiency, complete safety compliance, and maximum operational productivity.

Why Choose Al Manarat Al Munira?

Al Manarat Al Munira brings proven field experience in designing, supplying, and installing industrial lifting systems across Saudi Arabia, catering to the industrial, logistics, and construction sectors.

Key services include:

  1. Supplying gantry cranes across various capacities.
  2. Custom-engineering factory cranes based on project specs.
  3. Delivering tailored industrial lifting systems.
  4. Turnkey equipment installation and testing.
  5. Preventive and scheduled maintenance contracts.
  6. Supplying genuine OEM spare parts.
  7. Specialized technical support and engineering consultations.

The company aims to help clients optimize operational throughput, lower maintenance costs, and uphold safety across all operations.

Tips Before Purchasing Gantry Cranes

To ensure choosing the ideal system, make sure to:

  1. Accurately outline the operational scope.
  2. Verify required payload limits.
  3. Measure ground travel paths and clearance space.
  4. Review maximum lifting height needs.
  5. Partner with an established supplier experienced in the Saudi market.
  6. Confirm availability of long-term technical support and spare parts.
  7. Compare detailed technical specifications rather than price alone.

Frequently Asked Questions (FAQ)

What are gantry cranes?

Gantry cranes are freestanding lifting structures supported by floor legs on tracks or wheels, used to move heavy payloads inside factories and outdoor storage yards.

What is the difference between gantry cranes and overhead cranes?

Gantry cranes travel on floor level using wheels or rails, whereas overhead cranes run on elevated tracks attached to the facility's building columns.

Where are factory cranes used?

They are used across manufacturing plants, logistics warehouses, shipping ports, maintenance bays, and heavy storage yards requiring material handling.

What is meant by customized industrial lifting solutions?

These are tailor-engineered crane systems designed to match specific site layouts, target load capacities, and unique operational duty cycles.

Why is Al Manarat Al Munira the right choice?

Because Al Manarat Al Munira delivers end-to-end solutions covering design, supply, installation, and maintenance for gantry cranes and factory lifting equipment, adhering to strict safety and quality standards across Saudi Arabia.

Conclusion

Gantry cranes represent one of the best lifting solutions for industrial projects requiring movement flexibility, high strength, and safe heavy-payload handling. Relying on custom-engineered factory cranes aligned with operational demands ensures improved productivity and reduced long-term maintenance costs. Leveraging its experience in the Saudi market, Al Manarat Al Munira offers advanced lifting systems backed by engineering, installation, and maintenance support to guarantee long-term operational reliability.
